Appendectomy, open

  1. Relevant surgical anatomy

  • Prof. Dr. med. Gebhard Reiss

    Universität Witten/Herdecke

    Prof. Dr. med. Gebhard Reiss

Single Access

Access to this lecture
for 3 days

€1.99 inclusive VAT

payment

webop-Account single

full access to all lectures
price per month, cancellable on a monthly basis

for the modul: General Surgery

€9.90 inclusive VAT

payment

webop - yearly membership

full access to all lectures
price per year, cancellable on a yearly basis

for the modul: General Surgery

€98.00 inclusive VAT

(You save more than 20,00 Euro compared to the monthly membership)

payment

hospitals & libraries

for the modul: General Surgery

from 390,00 euros

ask it here

  • Relevant surgical anatomy

    Paid content (image)
    Surgical anatomy of the right lower quadrant

    The colon is about 1.5m long and originates at the confluence of the small intestine into the cecum. The cecum is located inferior to the ileocecal valve, has its own mesentery (→ mobility) with the appendicular artery and vein (← ileocolic artery← superior mesenteric artery) and is approx. 7cm long. The vermiform appendix originates on the dorsomedial wall of the cecum directly caudad of the ileocecal valve in the taenia libera. It is intraperitoneal, its length is 2–20cm and  its diameter between 0.5cm and 1cm. Usually, the appendix extends from the posterior middle of the cecum to the center of the body, but its position can be quite variable, and thus also the location and severity of tenderness. This surgical condition is incorrectly referred to as "appendicitis", although from an anatomical point of view the affected organ is merely the vermiform appendix of the cecum.

    Anatomical variants of the appendix:
      • Descending type: Appendix extending into the lesser pelvis. In women it may be closely adjacent to the ovary.
      • Medial position: Appendix between loops of the small intestine.
      • Lateral position: Appendix between the lateral abdominal wall and cecum.
      • Retrocecal position: Appendix turned craniad posterior to the cecum (65%)
      • Anterocecal position: Appendix turned craniad anterior to the cecum.
      • Subhepatic position: Appendix turned toward the liver and in contact with it.

    Histologically, the mucous membrane of the appendix demonstrates the same makeup as in the large bowel. However, it has a large number of lymphatic cells and thus becomes part of the human immune system. In addition, in the wall of the appendix the 3 individual strips of longitudinal muscles (taenia) characteristic of the colon conjoin to a complete layer once again.

    Follow this link for further information on the anterior abdominal wall.

  1. Indication
  2. Contraindication
  3. Preoperative diagnostic work-up
  4. Special preparation
  5. Informed consent
  6. Anesthesia
  7. Positioning
  8. Operating room setup
  9. Special instruments and fixation systems
  10. Postoperative management

  • Herr Prof. Dr. med. Stefan Post

    Universitätsklinikum Mannheim gGmbH

    Herr Prof. Dr. med. Stefan Post

  • Prof. Dr. med. Marco Niedergethmann

    Krupp Krankenhaus

    Prof. Dr. med. Marco Niedergethmann

Single Access

Access to this lecture
for 3 days

€1.99 inclusive VAT

payment

webop-Account single

full access to all lectures
price per month, cancellable on a monthly basis

for the modul: General Surgery

€9.90 inclusive VAT

payment

webop - yearly membership

full access to all lectures
price per year, cancellable on a yearly basis

for the modul: General Surgery

€98.00 inclusive VAT

(You save more than 20,00 Euro compared to the monthly membership)

payment

hospitals & libraries

for the modul: General Surgery

from 390,00 euros

ask it here

  • Indication

    Paid content (text)

  • Contraindication

    Paid content (text)

  • Preoperative diagnostic work-up

    Paid content (text)

  • Special preparation

    Paid content (text)

  • Informed consent

    Paid content (text)

  • Anesthesia

    Paid content (text)

  • Positioning

    Paid content (image)
    Paid content (text)

  • Operating room setup

    Paid content (image)
    Paid content (text)

  • Special instruments and fixation systems

    Paid content (text)

  • Postoperative management

    Paid content (text)
  1. Skin incision
  2. Splitting the external aponeurosis
  3. Splitting the abominal muscles
  4. Peritoneal incision
  5. Swabbing
  6. Coaxing out the cecum
  7. Dissectring the appendix
  8. Placing the purse string suture
  9. Ligating and resecting the appendiceal base
  10. Inverting the stump
  11. Peritoneal and fascial suture
  12. End of procedure
date of publication: 15.09.2009

  • Herr Prof. Dr. med. Stefan Post

    Universitätsklinikum Mannheim gGmbH

    Herr Prof. Dr. med. Stefan Post

  • Prof. Dr. med. Marco Niedergethmann

    Krupp Krankenhaus

    Prof. Dr. med. Marco Niedergethmann

surgery report

Single Access

Access to this lecture
for 3 days

€1.99 inclusive VAT

payment

webop-Account single

full access to all lectures
price per month, cancellable on a monthly basis

for the modul: General Surgery

€9.90 inclusive VAT

payment

webop - yearly membership

full access to all lectures
price per year, cancellable on a yearly basis

for the modul: General Surgery

€98.00 inclusive VAT

(You save more than 20,00 Euro compared to the monthly membership)

payment

hospitals & libraries

for the modul: General Surgery

from 390,00 euros

ask it here

  • Skin incision

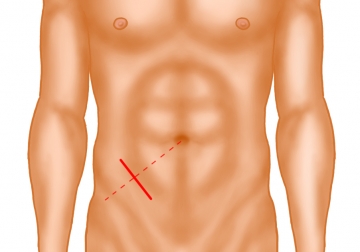

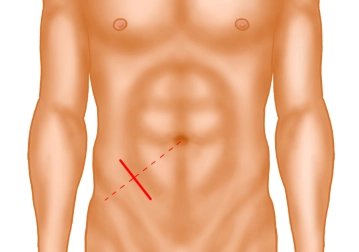

    12-4

    3–4cm long muscle splitting incision in right lower quadrant (at the lateral third of a virtual line from the anterior superior spine of the ilium to the umbilicus)
    Follow this by transecting the subcutis and Scarpa fascia with electrocautery.

    Note: Routine approach should be the muscle splitting incision, and not the pararectal incision, since the stacked muscles of the lateral abdominal wall virtually prevent incisional hernia. The often cited criticism that a muscle splitting incision cannot be extended if the surgical approach requires this is not correct: The muscle splitting incision may easily be extended superiad as “hockey-stick” incision and medially as modified Pfannenstiel incision.

  • Splitting the external aponeurosis

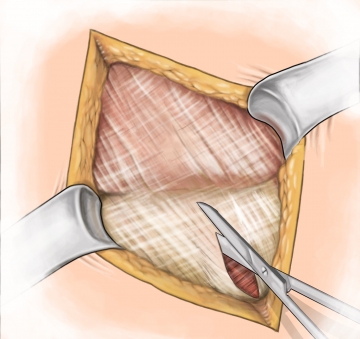

    12-5

    Split the external aponeurosis from laterocephalad to mediocaudad with scissors.

  • Splitting the abominal muscles

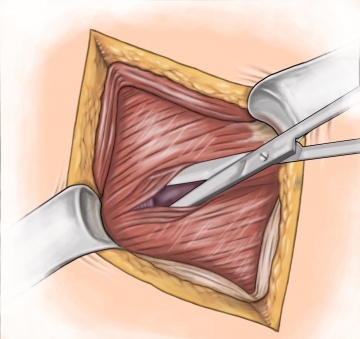

    12-6

    Bluntly split the internal oblique and transversalis abdominis with scissors and retract with Roux retractors.

  • Peritoneal incision

    Paid content (video)
    Paid content (image)

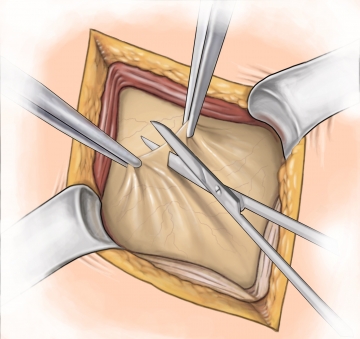

    Expose the peritoneum and open it with scissors.

  • Swabbing

    Paid content (video)
    Paid content (image)

    Take a swab of the intraperitoneal cavity.

  • Coaxing out the cecum

    Paid content (video)
    Paid content (image)

    Grasp the cecum and the appendix with a wet pad and with gentle traction coax it out through the wound.

  • Dissectring the appendix

    Paid content (video)
    Paid content (image)

    Dissect the appendix between Overholt clamps (close to its base, Overholt 19 or 14) by ligating and transecting the mesoappendiceal vessels in small bites.

  • Placing the purse string suture

    Paid content (video)
    Paid content (image)

    Place the Vicrly 3/0 SH purse string suture, needed later on for stump inversion, around the base at a distance of about 10mm.

    Tip: In challenging local situations it may be helpful to leave the purse string suture somewhat longer opposite its entry and exit. By lifting the cecum with both ends of the suture and the loop this facilitates stump inversion.

  • Ligating and resecting the appendiceal base

    Paid content (video)
    Paid content (image)

    Ligate the appendix at its base (Vicrly 3/0) and resect it on a PVP iodine swab with the scalpel (discard).

  • Inverting the stump

    Paid content (video)
    Paid content (image)

    Invert the appendiceal stump with forceps (assistant) while tightening the purse string suture (discard forceps and scissors after cutting the tails of the suture).
    Then clean the pouch of Douglas first with moist and then dry swabs.

    Note: No routine drainage if focus has been cleared and peritonitis is localized!

    Note: Only check for Meckel diverticulum in case of bland appendix.

      • Meckel diverticulum:
        Clamp the diverticulum sufficiently far from its base, resect and close it transversely with extramucosal single-layered suture (monofilament 4/0) or resect it with a linear cutter. (e.g,. ILA 52)

  • Peritoneal and fascial suture

    Paid content (video)
    Paid content (image)
    Paid content (text)

  • End of procedure

    Paid content (video)
    Paid content (image)
    Paid content (text)
  1. Intraoperative complications
  2. Postoperative complications

  • Herr Prof. Dr. med. Stefan Post

    Universitätsklinikum Mannheim gGmbH

    Herr Prof. Dr. med. Stefan Post

  • Prof. Dr. med. Marco Niedergethmann

    Krupp Krankenhaus

    Prof. Dr. med. Marco Niedergethmann

Single Access

Access to this lecture
for 3 days

€1.99 inclusive VAT

payment

webop-Account single

full access to all lectures
price per month, cancellable on a monthly basis

for the modul: General Surgery

€9.90 inclusive VAT

payment

webop - yearly membership

full access to all lectures
price per year, cancellable on a yearly basis

for the modul: General Surgery

€98.00 inclusive VAT

(You save more than 20,00 Euro compared to the monthly membership)

payment

hospitals & libraries

for the modul: General Surgery

from 390,00 euros

ask it here

  • Intraoperative complications

    Paid content (text)

  • Postoperative complications

    Paid content (text)
  1. Literature summary
  2. Ongoing trials on this topic
  3. References on this topic
  4. Literature search

  • Herr Prof. Dr. med. Stefan Post

    Universitätsklinikum Mannheim gGmbH

    Herr Prof. Dr. med. Stefan Post

  • Prof. Dr. med. Marco Niedergethmann

    Krupp Krankenhaus

    Prof. Dr. med. Marco Niedergethmann

Single Access

Access to this lecture
for 3 days

€1.99 inclusive VAT

payment

webop-Account single

full access to all lectures
price per month, cancellable on a monthly basis

for the modul: General Surgery

€9.90 inclusive VAT

payment

webop - yearly membership

full access to all lectures
price per year, cancellable on a yearly basis

for the modul: General Surgery

€98.00 inclusive VAT

(You save more than 20,00 Euro compared to the monthly membership)

payment

hospitals & libraries

for the modul: General Surgery

from 390,00 euros

ask it here

  • Literature summary

    Paid content (text)

  • Ongoing trials on this topic

    Paid content (text)

  • References on this topic

    Paid content (text)

  • Literature search

    Literature search under: http://www.pubmed.com
